CHC i73+ IMU GPS GNSS RTK System Package Kit

Buy Cheap USD $2850.00 ! New CHC i73+ IMU GPS GNSS RTK System Package Kit For Sale

CHC i73+ GNSS achieves survey-grade, fixed RTK centimeter.This receiver delivers high accuracy with full constellations, built-in UHF modem and modular intuitive software. All day reliable use with long lasting battery and the ability to seamlessly connect to the free LINZ RTK network. This complete package with full accessories

Specifications & Features :

• GNSS Channels: 1408 channels, Full GNSS tracking (GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS)
• Positioning Accuracy (RTK):
• Horizontal: 8 mm + 1 ppm RMS
• Vertical: 15 mm + 1 ppm RMS
• IMU Tilt Compensation: 200 Hz calibration-free IMU, up to 60° pole tilt
• Initialization Time: Typically <30 seconds
• Internal UHF Radio: 410–470 MHz Tx/Rx, Base & Rover capable
• Cellular: 4G LTE modem for NTRIP RTK corrections
• Wireless Connectivity: Bluetooth 4.2, Wi-Fi, NFC
• Internal Storage: 8 GB
• Battery: Built-in 6,800 mAh Li-ion
  Battery Life:
• RTK Rover: Up to 24 hours
• UHF Base: Up to 10.5 hours
• Static Survey: Up to 25 hours
• Weight: 0.73 kg (1.6 lb)
• Dimensions: 119 × 119 × 85 mm
• Environmental Rating: IP67 dustproof & waterproof
• Drop Resistance: 2-meter pole drop
• Operating Temperature: -40°C to +65°C
• Data Formats: RTCM 2.x/3.x, CMR, RINEX, NMEA 0183
• USB Port: USB Type-C
• Controller Compatibility: CHCNAV LandStar, Android field controllers, NTRIP networks

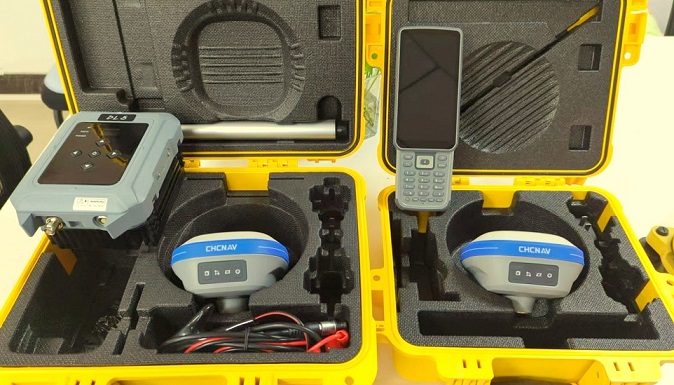

Package Includes :

• CHC i73+ GNSS Receiver
• Survey Pole
• Controller/Data Collector
• LandStar Field Software
• Charger & USB Cable
• UHF Antenna
• Carrying Case
• Tribrach/Adapter (depending on package)
• User Manual & Accessories
